Ford Test Products

Ford Test Bolts, Nuts, & Washers

If you’re in the business of automotive manufacturing, you know that OEMs like Ford mandate standardized torque-tension tests. If you’re working to complete torque-tension tests that meet Ford’s engineering standards, Wilson-Garner has you covered. We manufacture test bolts and stock nuts and washers that meet Ford torque-testing requirements, so you get the accurate results you need from every test.

Wilson-Garner manufactures and stocks American-made test products that conform to the following Ford engineering standards:

WZ-101 | WZ-102

Ford Test Products Available From Stock

Ford WZ-101 Torque-Tension Certification Testing

Test Bolt Part NumberTest Nut Part NumberTest Washer Part Number
HHM10150060-88SHNM010150ASSFM010SC-W101
M10X1.50X60MM PC8.8 Plain FinishM10X1.50 Style 2 Nut Plain FinishM10 Square Hardened Washer Plain Finish
Test Bolt Part Number
HHM10150060-88S
M10X1.50X60MM PC8.8 Plain Finish
Test Nut Part Number
HNM010150AS
M10X1.50 Style 2 Nut Plain Finish
Test Washer Part Number
SFM010SC-W101
M10 Square Hardened Washer Plain Finish

Ford WZ-102 Torque-Tension Certification Testing

Test Bolt Part NumberTest Nut Part NumberTest Washer Part Number
HHM10150060-WZ10211611982-S437SFM010SC-WZ102
M10X1.50X60MM PC10.9 Plain FinishM10X1.50 Class 10 Nut Zinc S437 FinishM10 Square Hardened Washer Plain Finish
Test Bolt Part Number
HHM10150060-WZ102
M10X1.50X60MM PC10.9 Plain Finish
Test Nut Part Number
11611982-S437
M10X1.50 Class 10 Nut Zinc S437 Finish
Test Washer Part Number
SFM010SC-WZ102
M10 Square Hardened Washer Plain Finish

Ford Test Bolt

Ford Test Bolt

M10 X 1.50 X 60MM PC8.8 Hex Head Ford WZ 101 Test Bolt Plain

This M10 Property Class 8.8 plain finish test bolt is suitable for torque-tension certification tests performed to the Ford WZ 101 and GMW16722 specifications.

  • Ford WZ 101
  • Property Class 8.8
  • Hex Head
  • Plain Finish

SKU: HHM10150060-88S

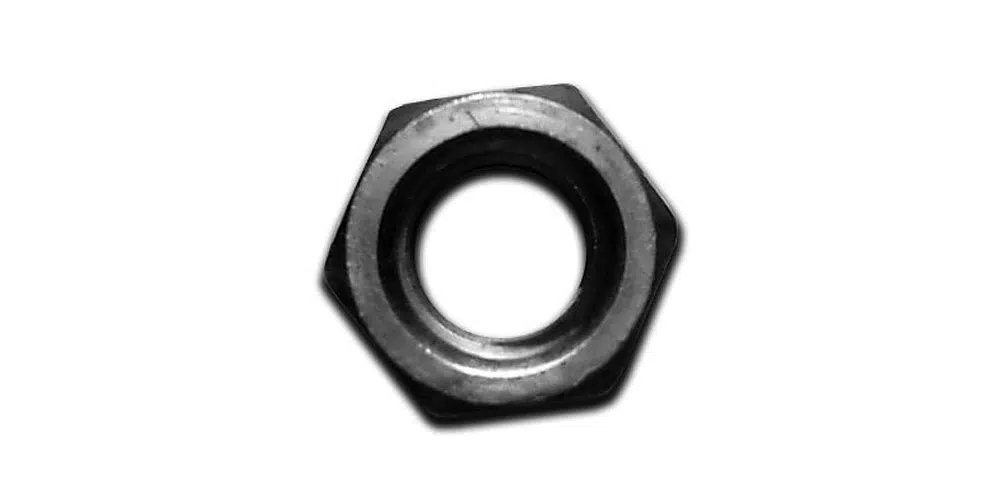

Ford Test Nut

Ford Test Nut

M10 X 1.50 Style 2 Hex GM Ford WZ-101 Test Nut Plain

This style 2 test nut is acceptable for use per Ford WZ 101 specifications.

  • Style 2
  • Plain Finish
  • Ford WZ 101

SKU: HNM010150AS

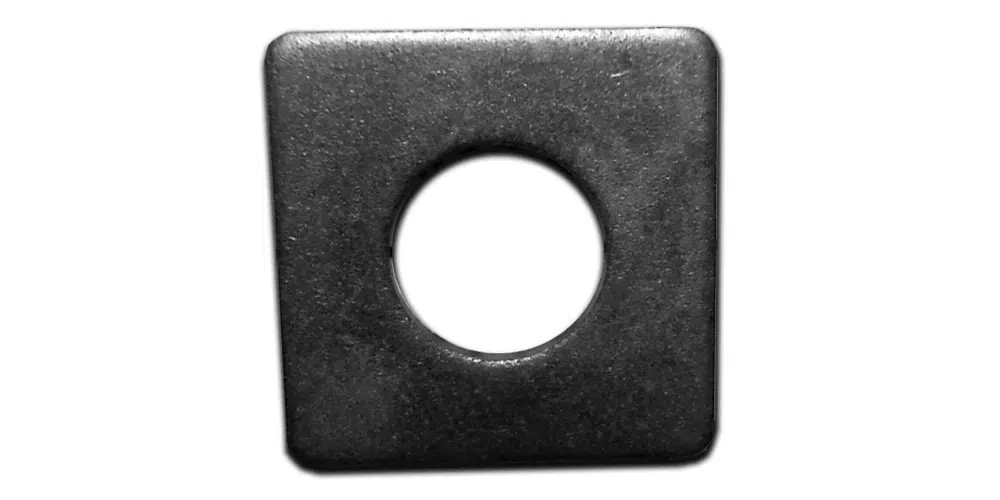

Ford Test Washer

Ford Test Washer

M10 Square Ford WZ 101 Test Washer Plain

This M10 plain square test washer is suitable for torque-tension certification tests performed to the Ford WZ 101 specification. The inside diameter of the washer is larger than a regular M10 test washer.

  • Ford WZ 101
  • Larger Inside Diameter
  • Plain Finish

SKU: SFM010SC-W101

Ford WZ-102 Test Bolt

Ford WZ-102 Test Bolt

M10 X 1.50 X 60MM PC10.9 Hex Head Ford WZ 102

This M10 plain PC 10.9 test bolt has a slightly larger head than a regular M10 test bolt. The head flats measure 16mm across. It is suitable for use in torque-tension and bearing surface characteristics tests performed to Ford WZ 102 specifications.

SKU: HHM10150060-WZ102

Ford WZ-102 Test Nut

Ford WZ-102 Test Nut

M10 X 1.50 Class 10 Ford WZ 102 Hex Test Nut Zinc S437

This M10 X 1.50 class 10 test nut has a zinc S437 finish and is suitable for torque-tension testing per Ford WZ-102.

  • Class 10
  • Zinc S437 Finish

SKU: 11611982-S437

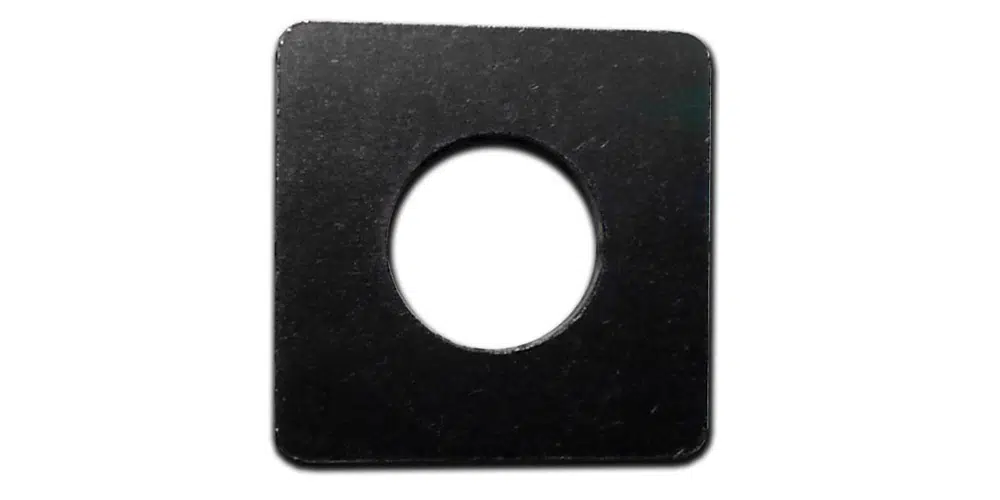

Ford WZ-102 Test Washer

Ford WZ-102 Test Washer

M10 Square Ford WZ 102 Test Washer Plain
This M10 square test washer has a plain finish and is suitable for testing per Ford WZ 102.

  • Square
  • Plain Finish

SKU: SFM010SC-WZ102
