Chrysler Test Products

Chrysler Test Bolts, Nuts & Washers

With over 70 years in the industry, Wilson-Garner understands the importance of the quality of Chrysler test products. Chrysler test bolts, nuts, and washers must be uniform from test to test to ensure proper, accurate results. We have the capability and the experience to supply Chrysler test products that meet exacting quality standards and ensure you get consistent test results time after time.

Wilson-Garner manufactures American-made test bolts and stocks test nuts and washers for use in torque-tension tests based on Chrysler Engineering Standards:
PS-5873 | PS-7902 | PS-9666

Chrysler Test Products Available from Stock:

Test Bolt Part NumberTest Nut Part NumberCoupon (Test Washer) Part Number
61012776101909SFM010SC
M10 x 1.50 x 65mm Grade 10.9 Plain Finish Screw & Washer AssemblyM10 x 1.50 Type EE Hex Weld Nut Plain FinishM10 Plain Finish Square Test Washer No Heat Treat
Test Bolt Part Number
6101277
M10 x 1.50 x 65mm Grade 10.9 Plain Finish Screw & Washer Assembly
Test Nut Part Number
6101909
M10 x 1.50 Type EE Hex Weld Nut Plain Finish
Coupon (Test Washer) Part Number
SFM010SC
M10 Plain Finish Square Test Washer No Heat Treat

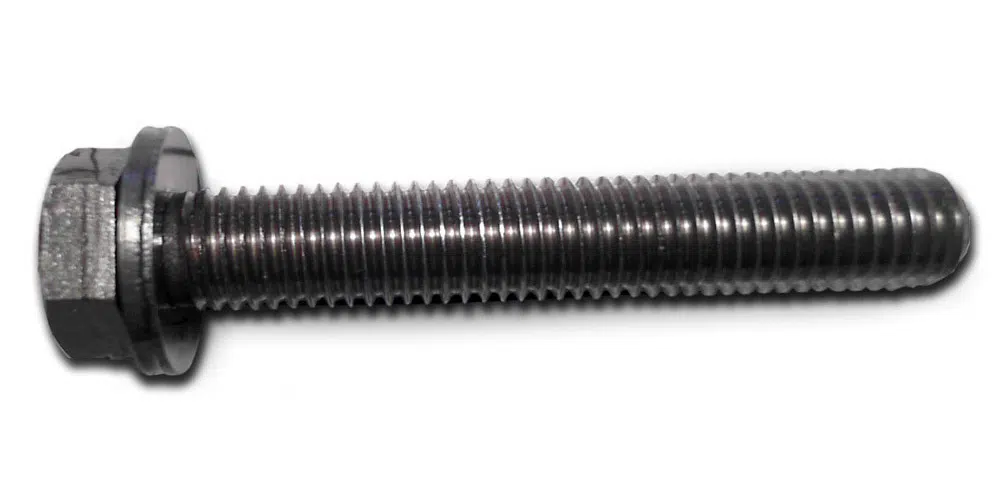

Chrysler Test Bolt

M10 X 1.50 X 65MM Hex Head Chrysler Test Bolt Plain With Washer

This M10 plain PC 10.9 hex head test screw and washer assembly is made to Chrysler specifications. The assembly includes a captive washer and is suitable for torque/tension certification tests performed to the following specs:

  • PS-5873
  • PS-7902
  • PS-9666

SKU: 6101277

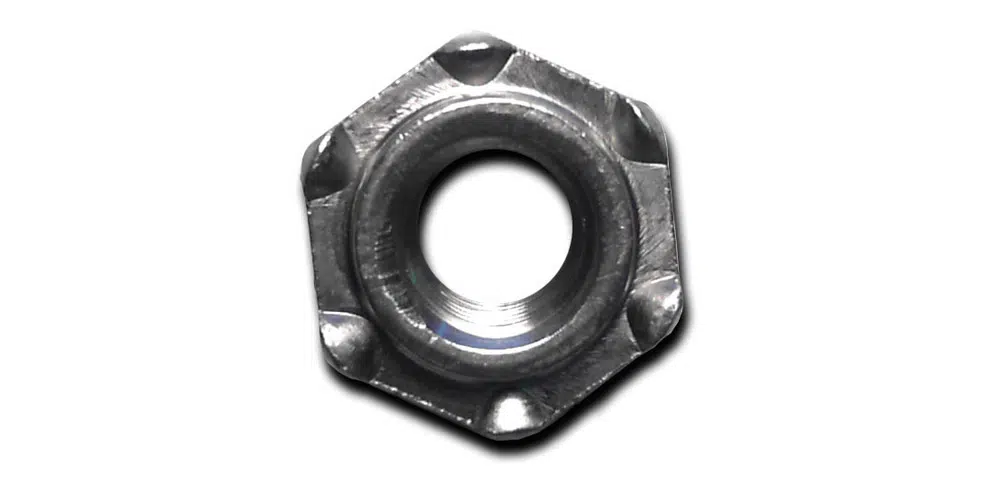

Chrysler Test Nut

M10 X 1.50 Type EE Chrysler Test Weld Nut Plain

This M10 plain type EE hex test weld nut is made to Chrysler specifications and is suitable for torque/tension certification tests performed to the following specs:

  • PS-5873
  • PS-7902
  • PS-9666

SKU: 6101909

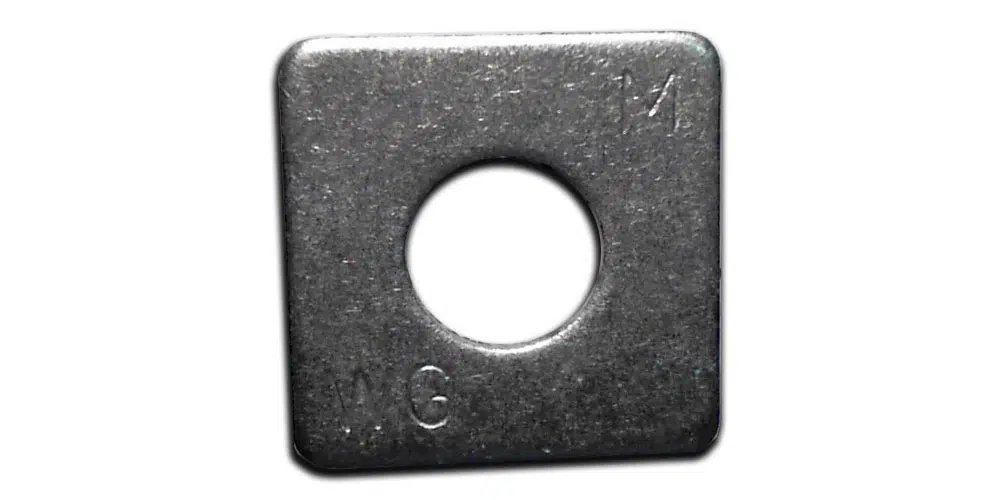

Chrysler Test Washer

M10 Square Chrysler Test Washer Plain No Heat Treat

This M10 plain square test washer has not been heat treated. It is suitable for torque-tension certification tests performed to the following Chrysler Specs:

  • PS-5873
  • PS-7902
  • PS-9666

SKU: SFM010SC
